WJ51C
Desktop Size – Industrial Output
Compact Desktop Wax 3D Printer
4 Challenges in Jewelry Manufacturing
Space Limitations
Limited workspace restricts the installation of large-scale equipment.
High Investment
High equipment cost for industrial wax 3D printers results in heavy upfront investment.
Rising Labor Costs
Increasing post-processing labor costs are eroding profitability.
Unstable Output
Traditional production methods struggle to maintain stability and consistency.
Spend Less. Produce More.
Less Equipment Investment
With its compact design, the printer maintains industrial-grade performance while reducing equipment investment.
Less Material Cost
Redesigned material supply enables on-demand wax usage, reducing waste and preventing degradation.
Less Post-Processing Cost
Industrial-grade precision ensures smooth and detailed wax patterns, minimizing manual post-processing work
Optimized Software Algorithms
Optimized algorithms enhance fine details and ensure consistently higher print quality
Upgraded Wax Materials
The new red wax blocks provide higher strength, better toughness, and lower risk of cracking
Compact High-Performance Design
A more compact design improves space efficiency while delivering higher overall performance
Industrial Output
Industry-Leading Resolution
2900*2900*1700DPI

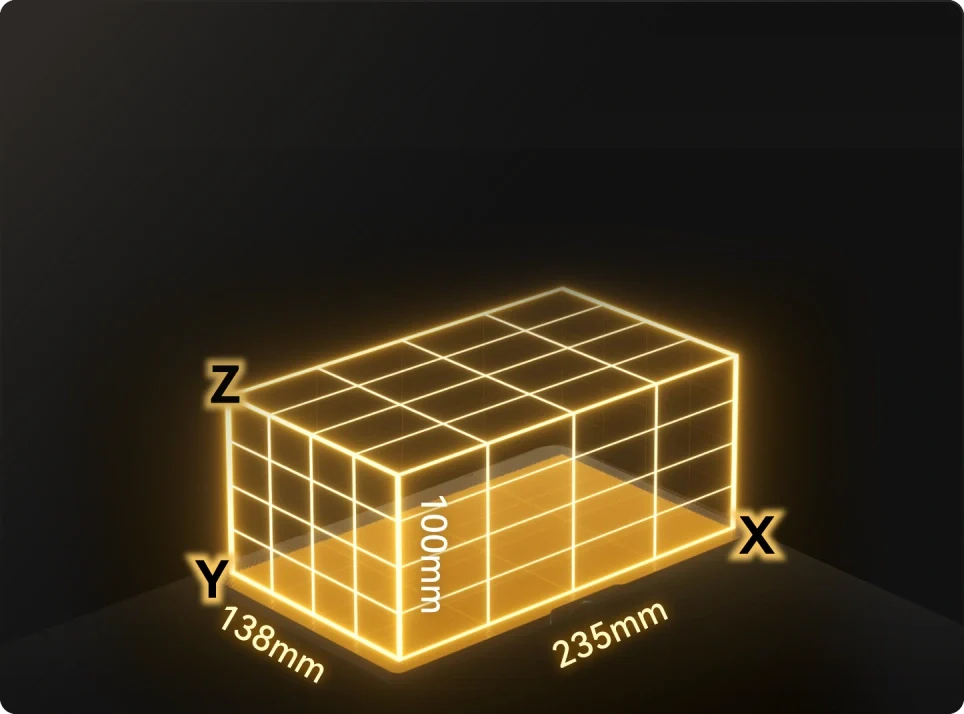

Build Volume
Impressive Printing Speed
Industry-Leading Wax Utilization
Built-in HD Camera
Key Applications for WJ51C
Ideal for Small Spaces
Low Initial Investment
Easy Operation
Flexible Multi-Unit Layout
Fast ROI
Less Material Waste
High Productivity
Technical Parameter
| Print Technology | MultiJet Printing (MJP) |
|---|---|
| Build Volume | 235 × 138 × 100 mm |
| Resolution | 2900 × 2900 × 1700 DPI; layer thickness: 15 μm |
| Dimensional Accuracy | ± 0.04 mm / 20 mm |
| Material Utilization | Part wax utilization rate ≥ 57% |
| Print Speed | Single-channel: 7 mm/hour; Dual-channel: 3.2 mm/hour |
| Slicing Software | WaxJetPrint |
| Supported Input Formats | STL, SLC |
| Connectivity | RJ-45, USB (Wi-Fi expandable) |
| Software Supported Operating Systems | Windows 10 / Windows 11 (64bit) |
| Power Supply | AC 100-240V, 50-60Hz, 2.2KW |
| Operating Environment | Temperature: 18-26°C; humidity: 30-70% |
| Equipment Dimensions | 865 × 510 × 654 mm |
| Equipment Weight | 115 kg |
| Packaging Dimensions | 1020 × 660 × 905 mm |
| Packaging Weight | 140 kg |
