HIGHER
The WJ530 is the only new-generation triple printhead wax 3D printer currently available on the global market. Designed for high-speed, simultaneous three-head printing, it significantly boosts production efficiency. Each unit delivers an average monthly wax output of up to 12 kg, setting a new benchmark for industrial-grade jewelry pattern production.
Faster Than Ever
The WJ530 delivers a top printing speed of 6.35 mm/h, completing each layer in just 8.2 seconds. As one of the fastest wax 3D printers in the industry, it offers exceptional efficiency for customized, high-volume wax pattern production. This high-speed performance is ideal for jewelry manufacturers seeking rapid turnaround and flexible output without compromising precision.
STRONGER
The WJ530 features Flashforge's patented high-precision MJP technology, delivering ultra-high resolution at 2900 × 2900 × 1700 DPI with layer thickness as fine as 15 microns. This exceptional accuracy produces smoother surface finishes and reduces post-processing time by 25% to 33%, helping jewelry manufacturers cut labor costs, accelerate turnaround, and gain a competitive advantage in high-volume jewelry manufacturing.
ULTRA-HIGH PERFORMANCE

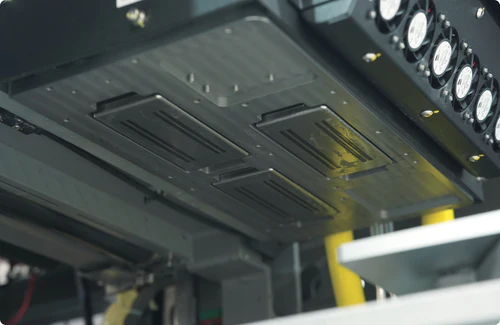

Stable & Durable
Patented self-developed wax circulation control system， 365*24-hour high-intensity testing, more durable printhead.
High Wax Material Utilization Rate
Stable output with a wax material utilization rate of 58%-60%, advanced technology and reliable printing improve utilization, reduce waste, and maximize production efficiency.
Intelligent Monitoring
Wi-Fi connectivity & 2K HD camera, monitor printing in real time for worry-free production
Exceptionally Easy to Electroplate
The red wax mold made from red wax perfectly adheres to electroplated silver coating.

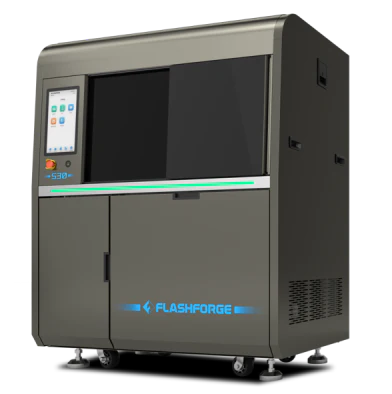

WaxJet 530
Printing Precision(XHD)
2900X2900X1700 DPI
Layer Thickness
15μm
Printing Material
Red Wax + White Wax
Layer Printing Time
8.2-8.5seconds
Wax Material Utilization Rate
58%-60%
Technical Parameter
| Printing Technology | MultiJet Printing (MJP) |
|---|---|
| Build Volume | 289*208*150mm |
| Printhead | 3 piezoelectric printheads |
| Dimensional Accuracy | 20mm 士0.04mm |
| Resolution | 2900*2900*1700DPl, layer thickness: 15μm |
| Material utilization | Material ≥55% |
| Printing Speed | ≥6.35mm/h ,15μm layer |
| Slicing Software | WaxJetPrint |
| Supported File Format | stl,slc |
| Connectivity | RJ-45/USB/WI-FI |
| Supported Operating Systems | Windows 7 / Windows 10(64bit) |
| Working Environment | Temp 18-26℃，Humidity 30-70% |
| Equipment Dimensions | 1352*775*1600mm |
| Net Weight | 480kg |
| Package Size | 1530*900*1837mm |
| Gross Weight | 630kg |
